Hallo zusammen,
wir haben das Phänomen bei der DECT Telefonie (W90DM mit 5 Basisstationen) einen Verbindungsabbruch nach ca. 10-20 Sekunden zu erhalten.
Das eigenartige daran ist, dass tage- und wochenlang alles funktioniert und auf einmal hat man stundenlang Probleme mit den Abbrüchen und
auf einmal funktioniert es wieder.
Hatte das jemand schon mal?
Der recht viel Traffic auf der Anlage ist, ist der richtige Log nicht einfach zu finden. Ich meine jedoch dass das 2 Abbrüche sind...
Jemand eine Idee?
Der Log sagt:
Ach ja: Linux Debian ISO Installation, Lokales Lan (VLAN), Die aktuelle V18 im Einsatz, die Endgeräte sind W53H.

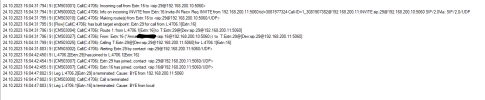

Im Anhang noch der DECT log. Aufgrund der Menge nur der Ausschnitt bei dem vermeintlichen Abbruch....
wir haben das Phänomen bei der DECT Telefonie (W90DM mit 5 Basisstationen) einen Verbindungsabbruch nach ca. 10-20 Sekunden zu erhalten.
Das eigenartige daran ist, dass tage- und wochenlang alles funktioniert und auf einmal hat man stundenlang Probleme mit den Abbrüchen und
auf einmal funktioniert es wieder.
Hatte das jemand schon mal?
Der recht viel Traffic auf der Anlage ist, ist der richtige Log nicht einfach zu finden. Ich meine jedoch dass das 2 Abbrüche sind...
Jemand eine Idee?
Der Log sagt:
24.10.2023 16:05:27 - Leg L:4709.2[Extn:16] is terminated: Cause: BYE from local
24.10.2023 16:05:22 - [CM503007]: Call(C:4709): Extn:16 has joined, contact <sip:[email protected]:5060/UDP>
24.10.2023 16:05:22 - L:4709.2[Extn:16] has joined to L:4709.1[Extn:29]
24.10.2023 16:05:13 - [CM505001]: Endpoint Extn:16: Device info: Device Not Identified: User Agent not matched; Capabilities:[reinvite, replaces, able-no-sdp, recvonly] UserAgent: [Yealink W90DM 130.85.0.53 249ad804a02f] PBX contact: [sip:[email protected]:5060]
24.10.2023 16:05:13 - [CM503002]: Call(C:4709): Alerting Extn:16 by contact <sip:[email protected]:5060/UDP>
24.10.2023 16:05:13 - [CM503025]: Call(C:4709): Calling T:Extn:16@[Dev:sip:[email protected]:5060] for L:4709.1[Extn:29]
24.10.2023 16:05:13 - [CM503027]: Call(C:4709): From: Extn:29 ("Daniel" <sip:[email protected]:5060>) to T:Extn:16@[Dev:sip:[email protected]:5060]
24.10.2023 16:05:13 - [CM503004]: Call(C:4709): Route 1: from L:4709.1[Extn:29] to T:Extn:16@[Dev:sip:[email protected]:5060]
24.10.2023 16:05:13 - [Flow] Call(C:4709): has built target endpoint: Extn:16 for call from L:4709.1[Extn:29]
24.10.2023 16:05:13 - [Flow] Target endpoint for 16 is Extn:16
24.10.2023 16:04:47 - Leg L:4706.1[Extn:16] is terminated: Cause: BYE from local
24.10.2023 16:04:42 - [CM503007]: Call(C:4706): Extn:16 has joined, contact <sip:[email protected]:5060/UDP>
24.10.2023 16:04:42 - L:4706.2[Extn:29] has joined to L:4706.1[Extn:16]
24.10.2023 16:04:31 - [CM503025]: Call(C:4706): Calling T:Extn:29@[Dev:sip:[email protected]:5060] for L:4706.1[Extn:16]
24.10.2023 16:04:31 - [CM503027]: Call(C:4706): From: Extn:16 ("Anna" <sip:[email protected]:5060>) to T:Extn:29@[Dev:sip:[email protected]:5060]
24.10.2023 16:04:31 - [CM503004]: Call(C:4706): Route 1: from L:4706.1[Extn:16] to T:Extn:29@[Dev:sip:[email protected]:5060]
24.10.2023 16:04:31 - [Flow] Call(C:4706): has built target endpoint: Extn:29 for call from L:4706.1[Extn:16]
24.10.2023 16:04:31 - [CM503010]: Call(C:4706): Making route(s) from Extn:16 to <sip:[email protected]:5060/UDP>
24.10.2023 16:04:31 - [CM505001]: Endpoint Extn:16: Device info: Device Not Identified: User Agent not matched; Capabilities:[reinvite, replaces, able-no-sdp, recvonly] UserAgent: [Yealink W90DM 130.85.0.53 249ad804a02f] PBX contact: [sip:[email protected]:5060]
24.10.2023 16:04:31 - [CM500002]: Call(C:4706): Info on incoming INVITE from Extn:16:
Invite-IN Recv Req INVITE from 192.168.200.11:5060 tid=3081977324 [email protected]:
INVITE sip:[email protected]:5060 SIP/2.0
Via: SIP/2.0/UDP 192.168.200.11:5060;branch=z9hG4bK3081977324
Max-Forwards: 70
Contact: <sip:[email protected]:5060>
To: <sip:[email protected]:5060>
From: "Anna"<sip:[email protected]:5060>;tag=3081842401
Call-ID: [email protected]
CSeq: 2 INVITE
Allow: INVITE, INFO, PRACK, ACK, BYE, CANCEL, OPTIONS, NOTIFY, REGISTER, SUBSCRIBE, REFER, PUBLISH, UPDATE, MESSAGE
Content-Type: application/sdp
Proxy-Authorization: Digest username="9SsDpFT5Fv",realm="3CXPhoneSystem",nonce="414d53596537ceef68:edf2ee18c31cebcf5b12a135a198d3ea",uri="sip:[email protected]:5060",response="8253e6c5ca7eb0fa5922c4451cf7d5ee",algorithm=MD5
Supported: replaces
User-Agent: Yealink W90DM 130.85.0.53 249ad804a02f
Allow-Events: talk, hold, conference, refer, check-sync
Content-Length: 310
v=0
o=- 33002 33002 IN IP4 192.168.200.17
s=SDP data
c=IN IP4 192.168.200.17
t=0 0
m=audio 12022 RTP/AVP 0 8 9 18 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:9 G722/8000
a=rtpmap:18 G729/8000
a=fmtp:18 annexb=no
a=ptime:20
a=sendrecv
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
24.10.2023 16:04:31 - [CM503001]: Call(C:4706): Incoming call from Extn:16 to <sip:[email protected]:5060>
Ach ja: Linux Debian ISO Installation, Lokales Lan (VLAN), Die aktuelle V18 im Einsatz, die Endgeräte sind W53H.
Im Anhang noch der DECT log. Aufgrund der Menge nur der Ausschnitt bei dem vermeintlichen Abbruch....
